Product Details:
|
Product Name: | Vertical 3-10mm Mini Planetary Laboratory Ball Mill Machine ISO Listed | Power Supply: | 220V/110V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 0.1um |
Capacity: | 1/3 Of Jar | Noise:: | Less Than 60db |
Highlight: | ISO Laboratory Ball Mill Machine,10mm Laboratory Ball Mill Machine,3mm planetary ball mill |
Vertical 3-10mm Mini Planetary Laboratory Ball Mill Machine ISO Listed
Product Introduction
YLK planetary ball mill is a necessary device of samples mixing and fine grindingThis model owns small volume, high efficiency, low noise and functional features.
Working Principle
When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder.
Applications
Mini planetary ball mill is widely applied in lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, piezoelectric ceramic, nano material, wafer ceramic capacitor, MLCC, thermistor (PTC, NTC), ZnO varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.

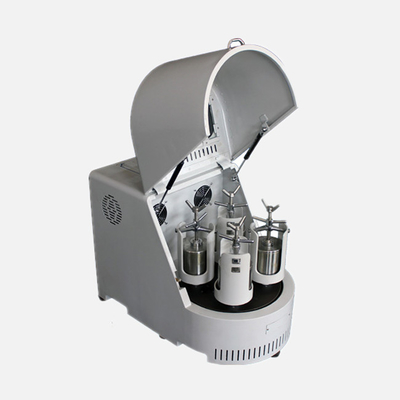

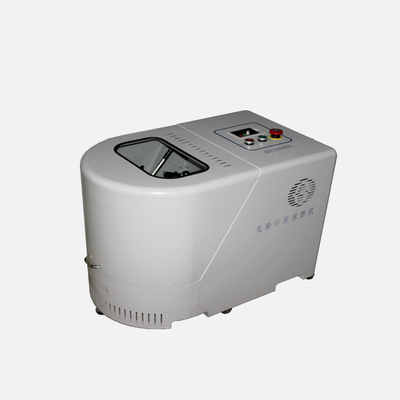

Product Display
Technical Features
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Max Load Capacity | Less than 2/3 of total volume of grinding jars |
Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
Output Granule | Minimum 0.1µm |
Rotational Speed Ratio | 1/2 |
Max.Continuous Operating Time | 72 Hours |
Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
YKM-0.4L | 100ml | 130ml | 45-430 | 90-870 | 58db | 0.25 | 29kg | 530*300*340 |
YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 80kg | 750*470*590 |
YKM-4L | 1L | 1.3L | 35-340 | 70-680 | 60db | 0.75 | 80kg | 8750*470*590 |
YKM-8L | 2L | 2.6L | 35-290 | 70-580 | 60db | 1.5 | 132 | 880*560*670 |
YKM-12L | 3L | 4L | 35-290 | 70-580 | 60db | 1.5 | 170 | 880*560*670 |
Accessories of Grinding Pots & Balls
