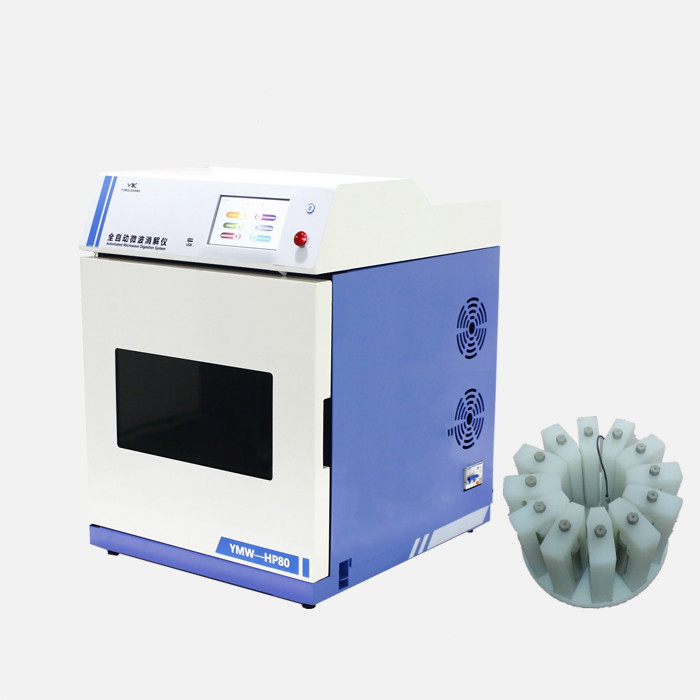

20 Vessels Microwave Digestion Instrument , Touch Screen Test Tube Heating Block

20 Vessels with Touch Screen Microwave Digestion

Product Introduction

Microwave digestion, as a high efficient sample preparation method, has advantages of fast heating, uniform heating performance, minimal reagent use, lower reagent blank, energy Saving and high efficiency. It keeps sample for volatile element analysis testing .It is widely used in food, textile, Geology, metallurgy, coal, biological medicine, petroleum chemistry, environment monitoring, sewage treatment, battery manufacturing fields.

Applications

1. Products such as seafood, milk powder, meat products, flour, Chinese patent medicines, synthetic pills, medical products, etc.
2. Testing of tap water, sewage, soil, plants, animal tissues and body fluids, textiles, etc.
3. Product testing of plastics, synthetic rubber, ROHS, ore, steel, alloys, etc.

Product Display

Product Parameters

1. Microwave source:  2450MHz, high-energy microwave field emission, dual magnetron emission;
2. Machine installation power:  2500W;
3. Maximum microwave output power:  2300W, continuous automatic microwave control;
4. Control:  7-inch capacitive color touch screen;
5. Microwave oven volume:  67L large volume and 316 thick stainless steel cavity, multi-layer corrosion-resistant PFA Teflon coating;
6. Rotors design: Coaxial one-way rotation, can be adapted to a variety of tank rotors;
7. Safety explosion-proof door design: Double-layer metal structure safety door, electronic and mechanical dual control;
8. Safety:  Intelligent judgment of abnormal state inside the cavity (abnormal sound check, abnormal temperature detection, all electronic equipment operation check) door state monitoring, microwave start is prohibited if the door is not closed;
9. Working environment temperature/humidity:  Working temperature: 0-40℃, working humidity: 15-85%RH;
10. Pressure measurement system:  Piezoelectric crystal pressure sensor, measuring range: 0-15MPa (2200psi), accuracy ±0.001MPa;
11. Temperature measurement control system:  Standard high-precision platinum resistance, temperature measurement range: 0-350℃, accuracy ±0.5℃, temperature control accuracy ±1℃ (optional high-precision multi-core optical fiber temperature sensor, temperature measurement range: 0-300 ℃, accuracy ±0.1℃, control accuracy ±0.1℃;
12. Temperature monitoring of the whole reaction tank (optional):  Optional IR infrared whole tank scanning temperature measurement system, temperature measurement range: 0-350℃, accuracy ±1℃;
13. Furnace cavity exhaust system:  High-power corrosion-resistant axial flow fan, turbulent university air cooling, only 20 minutes from 200℃ to 70℃;
14. Machine dimension: 630×530×630mm

Product Characters

1. New design uniform heating
2. large oven cavity
3. High-precision temperature measurement system
4. Frequency conversion temperature control system
5. Ultimate security system
6. Product accessories on demand

High quality large touch-screen
7 inch large touch screen for easy operation
High Resolution, clear display, easy readout
Multi parameters display: curves, pressure, timing, power, digestion procedure and operation procedure
Menu Operation design ensures clear operation and humanity.
Stable and good quality display.
