Digital Microwave Digester , 55ml Extraction System Lab Block Heater

Digital Microwave Digester , 55ml Extraction System Lab Block Heater
Digital Microwave Digester , 55ml Extraction System Lab Block Heater

Large Image :  Digital Microwave Digester , 55ml Extraction System Lab Block Heater

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YMW-100
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD6500-USD8500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 200units/month

Digital Microwave Digester , 55ml Extraction System Lab Block Heater

Description
Product Name: Low Price Laboratory Digital Microwave Digestion & Extraction System Price Volume Per Vessel: 55ml
Batch Process: Min.8pc- Max.24pcs Max.Temperature: 250℃
Power Supply: 210-230V AC, 50Hz, 15 A Max. Samples Capacity: 0.1-0.5g
High Light:

Digital microwave digester

,

microwave digester Extraction System

,

55ml lab block heater

Low Price Laboratory Digital Microwave Digestion & Extraction System Price



Product Introduction

YMW series closed microwave digestion system as an efficient sample pretreatment equipment, which can provide fast ,safety and clean digestion treatment for users. Also it can expedite the chemical reaction speed and depth of samples under the condition of high temperature and high pressure. So the digestion system will not damage the elements such as highly volatile silver, mercury etc. Widely applied in the chemistry industry, food analysis, environmental monitoring, disease control center, quality supervision and commodity inspection etc.



Applications

  1. Food and medicine fields:  products such as seafood, milk powder, meat products, flour, Chinese patent medicines, synthetic pills, medical products, etc.
  2. Environmental animals and plants fields:  testing of tap water, sewage, soil, plants, animal tissues and body fluids, textiles, etc.
  3. Material metallurgy fields:  product testing of plastics, synthetic rubber, ROHS, ore, steel, alloys, etc.

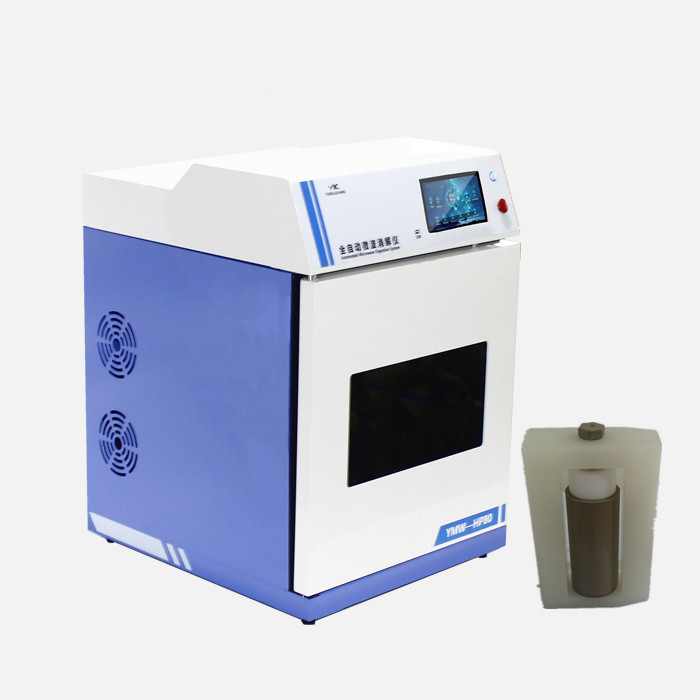

Product Display

Digital Microwave Digester , 55ml Extraction System Lab Block Heater 0



Product Parameters

  1. Microwave source:  2450MHz, high-energy microwave field emission, dual magnetron emission;
  2. Machine installation power:  2500W;
  3. Maximum microwave output power:  2300W, continuous automatic microwave control;
  4. Control:  7-inch capacitive color touch screen;
  5. Microwave oven volume:  67L large volume and 316 thick stainless steel cavity, multi-layer corrosion-resistant PFA Teflon coating;
  6. Rotors design: Coaxial one-way rotation, can be adapted to a variety of tank rotors;
  7. Safety explosion-proof door design: Double-layer metal structure safety door, electronic and mechanical dual control;
  8. Safety:  Intelligent judgment of abnormal state inside the cavity (abnormal sound check, abnormal temperature detection, all electronic equipment operation check) door state monitoring, microwave start is prohibited if the door is not closed;
  9. Working environment temperature/humidity:  Working temperature: 0-40℃, working humidity: 15-85%RH;
  10. Pressure measurement system:  Piezoelectric crystal pressure sensor, measuring range: 0-15MPa (2200psi), accuracy ±0.001MPa;
  11. Temperature measurement control system:  Standard high-precision platinum resistance, temperature measurement range: 0-350℃, accuracy ±0.5℃, temperature control accuracy ±1℃ (optional high-precision multi-core optical fiber temperature sensor, temperature measurement range: 0-300 ℃, accuracy ±0.1℃, control accuracy ±0.1℃;
  12. Temperature monitoring of the whole reaction tank (optional):  Optional IR infrared whole tank scanning temperature measurement system, temperature measurement range: 0-350℃, accuracy ±1℃;
  13. Furnace cavity exhaust system:  High-power corrosion-resistant axial flow fan, turbulent university air cooling, only 20 minutes from 200℃ to 70℃;
  14. Machine dimension: 630×530×630mm
Model No. YMW-80 YMW-100 YMW-100S
Vessel Type 1-14pcs closed vessel 14pcs high temperature quartz vessel 20pcs closed vessel
Inner Tank Material TFM TFM TFM
Volume Per Vessel 80ml 100ml 100ml
Maximum Pressure 14MPa(2000psi) 8MPa (1100psi) 6MPa (850psi)
Max.Temperature 250℃ 300℃ 250℃
Max. Capacity Per Vessel 0.1-0.5g 0.1-0.5g 0.1-0.5g
HF Proof YES NO YES
Tank Anti-explosion

Material distort pressure release,resume automatically, no need consumables

Imported aluminium alloy, anti-explosion film

Imported aluminium alloy

anti-explosion film





Product Characters

• Up to 20 vessels to meet different digestion requirements.
• Vertical Microwave design for even distribution of microwave.
• Real time monitoring for both temperature and pressure of each vessel.
• Contactless monitoring with no burst disk design saves consumable cost and maintenance cost.
• Imported vessel material for both samplevessel and protection vessel ensures safety
• Touch screen with user-friendly interface for easy operation.
• Pre-installed international standard methods while user can also edit, save, modify and delete own method.
• 316L stainless steel tank with teflon coating voids erosion and ensures fast cooling.
• Special magnetron design which carries out high microwave leakage standards.
