Product Details:
|
| Product Name: | China Supplier 50ml To 2000ml Lab Use Agate Ball Mill Jar Agate Grinding Jar | Material: | Agate |
|---|---|---|---|
| Volume: | 100ml/250ml/500ml/1L/2L/5L | Usage: | Used For Ball Mill Machine |
| Highlight: | 50ml stainless steel milling jar,2000ml stainless steel milling jar,Lab agate grinding jar |
||
China Supplier 50ml To 2000ml Lab Use Agate Ball Mill Jar Agate Grinding Jar
Product Introduction

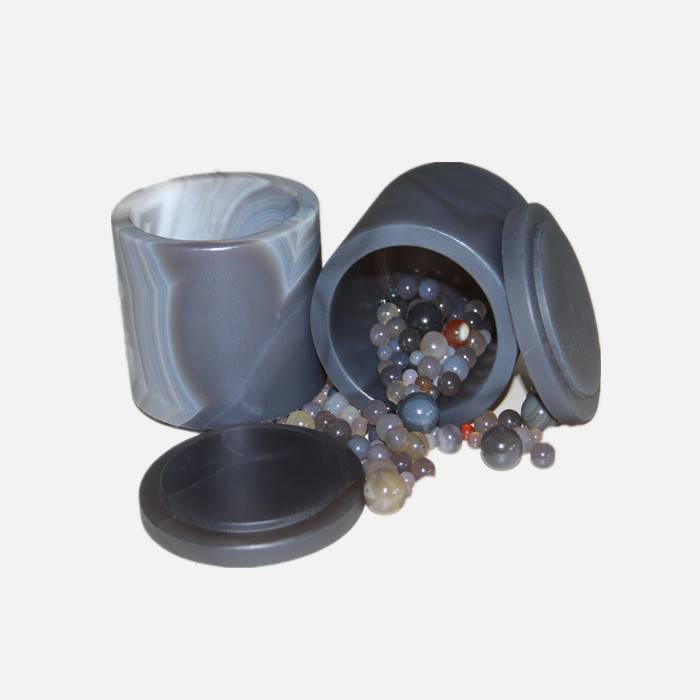

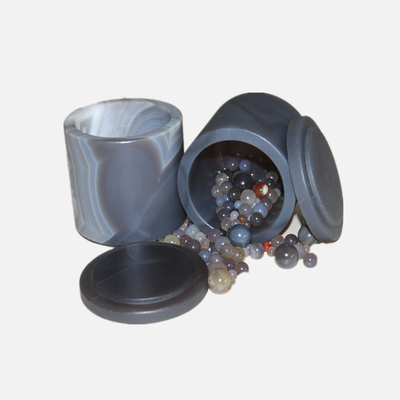

Agate Mill Jar is a kind of material powder grinding jar which is matched for planetary ball mill machine. It has the advantages of high hardness, wear resistant, pollution avoid and high purify and it is always the first choice of grinding jar.
Product Parameters
| Volume of Jar |
Outside Diameter (mm) |
Inner Diameter (mm) |
Inner Depth (mm) |
Height of Jar (Not Contain Cover (mm) | Total Height (mm) | Weight (KG) |
| 50ml | 65 | 45 | 37 | 49 | 57 | 0.36 |
| 100ml | 75 | 50 | 52 | 62 | 70 | 0.56 |
| 250ml | 94 | 73 | 70 | 80 | 90 | 0.84 |
| 500ml | 106 | 82 | 90 | 100 | 108 | 1.31 |
| 1L | 130 | 107 | 114 | 126 | 141 | 2.54 |
| 2L | 156 | 130 | 150 | 170 | 190 | 4.43 |
Product Display
Material: Natural Agate
Capacity: 50ml, 100ml, 250ml,400ml, 500ml, 800ml, 1000ml, 2000ml (or custom manufacture as the dimension as you need)
NOTE: Made of natural agate, there is color difference between each piece.
