Product Details:
|
Product Name: | 50ml To 1000ml Lab Agate Ball Mill Jar/Agate Grinding Jar | Material: | Agate |
---|---|---|---|
Volume: | 100ml/250ml/500ml/1L/2L/5L | Usage: | Used For Ball Mill Machine |
Highlight: | Agate ball mill grinding pots,50ml ball mill grinding pots,1000ml agate jar |

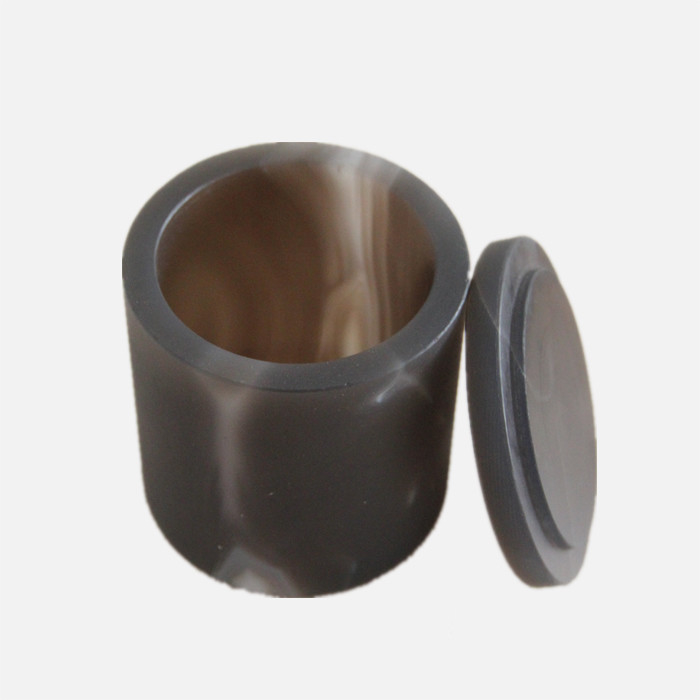

50ml To 1000ml Lab Agate Ball Mill Jar/Agate Grinding Jar
Product Introduction
Agate Mill Jar is a kind of material powder grinding jar which is matched for planetary ball mill machine. It has the advantages of high hardness, wear resistant, pollution avoid and high purify and it is always the first choice of grinding jar.
Product Parameters
Volume of Jar |
Outside Diameter (mm) |
Inner Diameter (mm) |
Inner Depth (mm) |
Height of Jar (Not Contain Cover (mm) | Total Height (mm) | Weight (KG) |
50ml | 65 | 45 | 37 | 49 | 57 | 0.36 |
100ml | 75 | 50 | 52 | 62 | 70 | 0.56 |
250ml | 94 | 73 | 70 | 80 | 90 | 0.84 |
500ml | 106 | 82 | 90 | 100 | 108 | 1.31 |
1L | 130 | 107 | 114 | 126 | 141 | 2.54 |
2L | 156 | 130 | 150 | 170 | 190 | 4.43 |
Product Display
Features
1. High cost-effective, low wear and long lifetime
2. High specific gravity, high efficiency
3. Highly wear resistant to acid and solvents
4. Highly polished, smooth, easy to clean, low abrasion to the equipment
5. High mechanical strength, good toughness, impact resistance, no broken beads
6. Mainly used for lab planetary ball mill machine
