Product Details:
|
| Product Name: | Parallel Concentration Evaporator For Laboratory Extraction | Samples Quantity: | 24pcs |
|---|---|---|---|
| Concentration Method: | Water Bath Heating, Nitrogen Purge | Temperature Control Range: | Room Temp.-95℃ |
| Power: | 1200W | Warranty: | One Year |
| Highlight: | Laboratory solvent absorption concentrator,Parallel nitrogen blowdown evaporator,nitrogen blowdown evaporator |
||

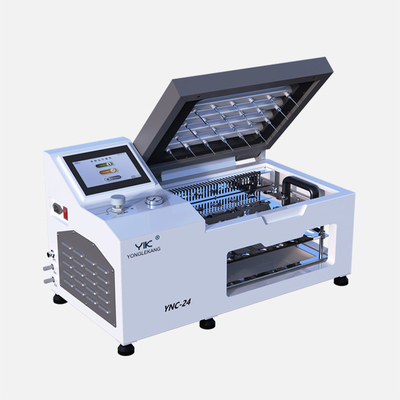

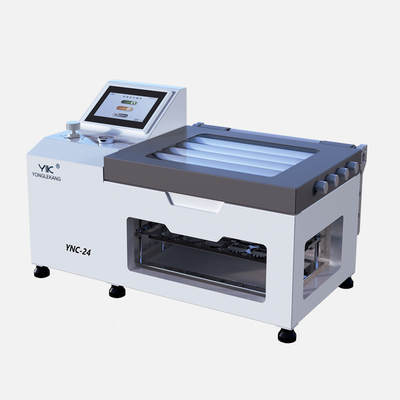

Parallel Nitrogen Blowdown Evaporator , Laboratory Solvent Absorption Concentrator
Product Introduction
In organic analysis, the sample preparation process includes the basic steps of organic solvent extraction, concentration, separation and purification, and re-concentration, which are indispensable. Common devices or methods to complete the concentration process include rotary evaporator, concentrator and nitrogen purge, etc. Among them, nitrogen blowing is the simplest concentration. When a large number of samples or a large amount of solvent needs to be analyzed at the same time, the concentration step is very laborious and time-consuming. Oue company successfully solved these problems by integrating and optimizing the advantages of the existing technology, and successfully developed the multi-sample automatic parallel concentration. It also greatly avoided the contact of operators with organic poisonous solvents. It can be used as a necessary device for routine laboratory.
Applications
Product Parameters
| Model | YNC-24 |
| Samples quantity | 24pcs |
| Concentration method | Water bath heating, nitrogen purge |
| Reagent bottle specifications | Outer diameter ≤30mm, Length ≤150mm |
| Temperature control accuracy | ±0.2℃ |
| Temperature control range | Room temp.-95℃ |
| Intake pressure | 0.2-0.6Mpa |
| Blowing pressure | 0-0.1Mpa |
| Power | 1200W |
Product Advantages
