Air Purification System Nitrogen Vacuum Chamber With Gloves 2 Ports

Air Purification System Nitrogen Vacuum Chamber With Gloves 2 Ports
Air Purification System Nitrogen Vacuum Chamber With Gloves 2 Ports

Large Image :  Air Purification System Nitrogen Vacuum Chamber With Gloves 2 Ports

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKG-800A
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: Carton+Foam
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Paypal, Alibaba Trade, Credit Card
Supply Ability: 100units/month

Air Purification System Nitrogen Vacuum Chamber With Gloves 2 Ports

Description
Product Name: Air Purification System Glove Box Material: Stainless Steel
Transit Box: Two Glove Ports: 2
Oxygen Contents: ≤1ppm Water Contents: ≤1ppm
High Light:

Air Purification vacuum chamber with gloves

,

2Ports nitrogen glove box

,

nitrogen vacuum chamber with gloves

Air Purification System Glove Box



Product Introduction

YKG series Air Purification System Glove Box is a kind of laboratory equipment which can provide a sealed environment for sample operation and testing. By the automatic air purification system, the Glove Box system will cycle to remove internal active substances, allow the system always maintain high cleanliness and high purity inert gas environment, and keep the water & oxygen contents in equipment to 1ppm below.



Applications

YLK Air Purification System Glove Box are often used in scientific experiment scenes that have strict requirements for water, oxygen, and inert gas atmospheres, It is suitable for chemical, geological, mineral, pharmaceutical, magnetic materials, equipment batteries, biochemical, metallurgy, electronics, biological cultivation, food packaging, battery materials and other production processes that require processing under a protective atmosphere. It is one of the commonly used equipment in scientific research institutes, enterprise institutions, and third-party experimental institutions.

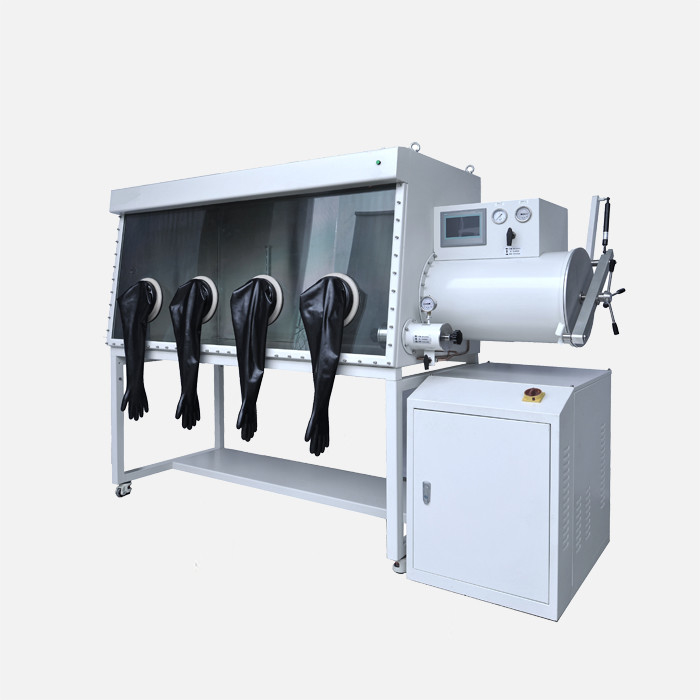

Product Display

Air Purification System Nitrogen Vacuum Chamber With Gloves 2 Ports 0



Product Features

  1. Quantity of Gloves: 2, 3, 4, 6, 8 gloves are available.
  2. Operation Side: Double side or single side for Choose.
  3. Purification Column: 1pcs or 2pcs for choose.
  4. Carbinet Gas Pressure Withstand:-3000Pa ~ 3000Pa.
  5. Cabinets Water Contents Under Standard Case ( 1 Pa, 20 degree ):≤1ppm.
  6. Oxygen Contents Under Standard Case control ( 1 Pa, 20 degree ):≤1ppm.
  7. Leakage Rate ( 1 Pa, 20 degree):≤0.05Vol%/h



Product Parameters

Model Gloves (pcs) Operation Side Purification Column (pcs) Operation Box Size Overall Dimension
YKG-800A 2 1 1 1200*800*930mm 1915*830*1830mm
YKG-800D 2 1 2 1200*800*930mm 1915*830*1830mm
YKG-1000A 4 2 1 1200*1000*930mm 1915*1060*1830mm
YKG-1000D 4 2 2 1200*1000*930mm 1915*1060*1830mm
YKG-1200A 4 2 1 1200*1200*930mm 1915*1260*1830mm
YKG-1200D 4 2 2 1200*1200*930mm 1915*1260*1830mm



Product Functions

1. Sealed Cycle System:
It forms a sealed cycle system by vacuum glove box and air purification system. And the air purification system will provide the power of air cycle.

2. Interface:
Equipped with convenient colorful touch screen with Chinese / English / Russian language interface

3. The Control Systems:
1> Pressure Control System: automatic/by manual
2> Air Purification System: automatic/by manual
3> Air Purification Restore System: automatic
4> Box Inner Condition Alarm System: automatic
5> Box Inner Condition & pressure Parameter Set: automatic/by manual
6> Parameter Set of Automatic Air Purification System
7> Look up the history records of system;
8> Detect the working condition of Air Purification System
9> Alarm System for operation errors and warns



4. Reduction & Reproduction:
The Purification System applies the reproducable & reducible purification material by automatic system control. To achieve the reduction & reproduction, it should connect the power and be supplied with hydrogen(5-10%) with inactive gas mixed.



5. Mis-operation Avoid:
Apply the PLC program control system to detect the working condition of environment & machine. And the system will indicate with the Operation Error or Condition Inadequate alarm if there’s any problems to ensure the safety & convenience.
