Product Details:
|
Product Name: | Acrylic Glove Box (A Type) | Material: | Acrylic |
---|---|---|---|
Transit Box: | One | Glove Ports: | 2 |
Highlight: | Vacuum inert atmosphere glove box,geological inert atmosphere glove box,Acrylic vacuum atmospheres glove box |

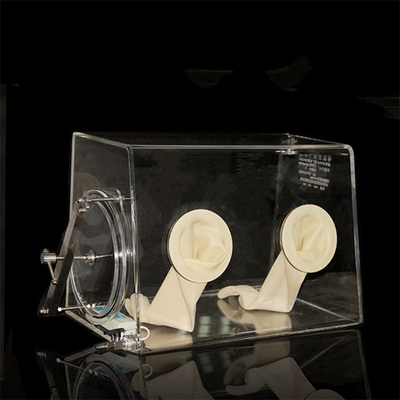

Acrylic Glove Box (A Type)
Product Introduction
Some substances are easily to be oxidized and humidified under the atmospheric conditions during the process of scientific experiments, which will affect the test process and results. Then acrylic vacuum glove box can solve all those problems effectively. Test sample can be placed safely in the device and operators can deal with the sample freely under anhydrous and anaerobic state to ensure experimental operation. The glove box is mainly composed of main box, transit box and side door.
Applications
It is widely used in chemical, metallurgical, electronic, chemical, geological, mineral, pharmaceutical and other departments. Electronic materials, magnetic materials, battery, biological cultivation, food vacuum packaging,battery materials, etc.
Technical Features
Transit box vacuum degree | 0~ -0.1Mpa (2.5 Vacuum gauge), pressure maintain period for 12Hours above |
Operation box vacuum degree | 0~ -0.1Mpa (2.5 Vacuum gauge), pressure maintain period for 12Hours above |
Inlet gas proposed | Argon / Nitrogen / Helium gas (with 99.95% purity above) |
Product Parameters
Model | Operation Box (mm) | Thickness of Acrylic (mm) | Transit Box (mm) | Vacuum Function |
YKG-012A | 700*450*500 | 10mm | 240*240*240 | NO vacuum function for both operation box and transit box |
YKG-011A | 800*550*600 | 10mm | 240*240*240 | |
YKG-010A | 1000*500*500 | 10mm | 240*240*240 | |
YKG-009A | 1000*700*500 | 10mm | 240*240*240 | |
YKG-008A | 900*600*700 | 10mm | 240*240*240 | |
YKG-007A | 1000*600*700 | 10mm | 240*240*240 | |
YKG-006A | 1000*750*700 | 10mm | 240*240*240 | |
YKG-005A | 1200*600*600 | 10mm | 240*240*240 | |
YKG-004A | 1200*600*700 | 10mm | 240*240*240 | |
YKG-003A | 1200*800*600 | 10mm | 240*240*240 | |
YKG-002A | 1200*800*700 | 10mm | 240*240*240 | |
YKG-001A | 1094*640*645 | 10mm | 240*240*240 |
Product Features
Operation Notice
