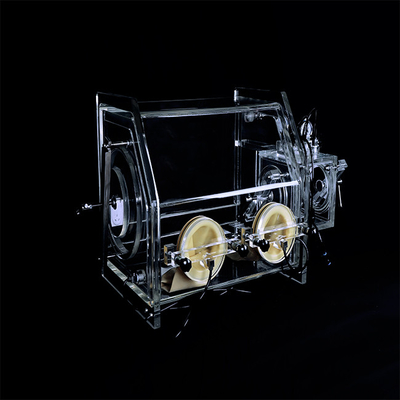

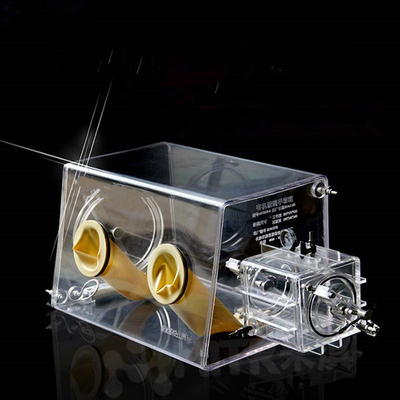

Chemical Acrylic Vacuum Glove Box B Type 2 Ports Helium Gas

Chemical Acrylic Vacuum Glove Box B Type 2 Ports Helium Gas
Chemical Acrylic Vacuum Glove Box B Type 2 Ports Helium Gas Chemical Acrylic Vacuum Glove Box B Type 2 Ports Helium Gas

Large Image :  Chemical Acrylic Vacuum Glove Box B Type 2 Ports Helium Gas

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKG-012B
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD2000-USD3000
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T, Paypal, Alibaba Trade, Credit Card
Supply Ability: 300units/month

Chemical Acrylic Vacuum Glove Box B Type 2 Ports Helium Gas

Description
Product Name: Chemical Acrylic Vacuum Glove Box B Type 2 Ports Helium Gas Material: Acrylic
Transit Box: One Glove Ports: 2
High Light:

B Type acrylic glove box

,

2Ports Vacuum Glove Box

,

Helium gas Vacuum Glove Box

Chemical Acrylic Vacuum Glove Box B Type 2 Ports Helium Gas



Product Introduction

Some materials are very sensitive to water and oxygen when doing chemical experiment. So it is hard to finish the research. Although vacuum vessel can satisfy anaerobic and vacuum degree, it is not convenient for operating the procedure. Vacuum glove box solve the environment and operation problem.



Applications

Widely used in anaerobic anhydrous dust-free high purifying operating environment in which lithium battery, semi-conductor, super capacitor, special lamp, laser welding, soldering, material composition, OLED, MOCVD and many more processing. Also application in biology such as anaerobe cultivation, cell hypoxic cultivation.



Technical Features

Transit box vacuum degree 0~ -0.1Mpa (2.5 Vacuum gauge), pressure maintain period for 12Hours above
Operation box vacuum degree 0~ -0.1Mpa (2.5 Vacuum gauge), pressure maintain period for 12Hours above



Product Parameters

Model Operation Box (mm) Thickness of Acrylic (mm) Transit Box (mm) Vacuum Function
YKG-012B 700*450*500 10mm 240*240*240 It owns vacuum function for operation box, and no vacuum function for transit box
YKG-011B 800*550*600 10mm 240*240*240
YKG-010B 1000*500*500 10mm 240*240*240
YKG-009B 1000*700*500 10mm 240*240*240
YKG-008B 900*600*700 10mm 240*240*240
YKG-007B 1000*600*700 10mm 240*240*240
YKG-006B 1000*750*700 10mm 240*240*240
YKG-005B 1200*600*600 10mm 240*240*240
YKG-004B 1200*600*700 10mm 240*240*240
YKG-001B 1094*640*645 10mm 240*240*240



Product Features

  1. Simple structure.
  2. Highly transparent, resistance for corrosion substance and climate change in normal situation.
  3. Installed multihole socket for doing experiment easily and conveniently.
  4. Good airtightness to shield and absorb in α-ray and β-ray to protect people from radiant hurt.
  5. Inert gas replacement.

Operation Notice

  • While under vacuum state, it is not allowed to open door or glove interface cover, not allowed to discharge any part to check and repair
  • Please start vacuumizing the glove interface first or vacuum gloves with main box together. And stop vacuumizing main box first or stop vacuumizing main box with gloves together.
  • The accessory to connect with vacuum tube should be fit and sealed tightly. It should not exceed 1Pa when filling in inert gas.
