Product Details:
|
Product Name: | Ball Mill Agate Ball Mill Laboratory, Agate Mill Jar, Milling Jar | Material: | Agate |
---|---|---|---|
Volume: | 100ml/250ml/500ml/1L/2L/5L | Usage: | Used For Ball Mill Machine |
Highlight: | 100ml zirconia ball mill jar,Laboratory zirconia ball mill jar,0.56kg ceramic ball mill jar |
Ball Mill Agate Ball Mill Laboratory, Agate Mill Jar, Milling Jar
Product Introduction
Agate Mill Jar is a kind of material powder grinding jar which is matched for planetary ball mill machine. It has the advantages of high hardness, wear resistant, pollution avoid and high purify and it is always the first choice of grinding jar.
Applications
Agate jar is always applied as ball milling jar in high standard required industries, such as electronic material, biologic medicine, chemical research, ceramic, non-metal mine and high tech materials.
Product Parameters
Volume of Jar |
Outside Diameter (mm) |
Inner Diameter (mm) |
Inner Depth (mm) |
Height of Jar (Not Contain Cover (mm) | Total Height (mm) | Weight (KG) |
50ml | 65 | 45 | 37 | 49 | 57 | 0.36 |
100ml | 75 | 50 | 52 | 62 | 70 | 0.56 |
250ml | 94 | 73 | 70 | 80 | 90 | 0.84 |
500ml | 106 | 82 | 90 | 100 | 108 | 1.31 |
1L | 130 | 107 | 114 | 126 | 141 | 2.54 |
2L | 156 | 130 | 150 | 170 | 190 | 4.43 |

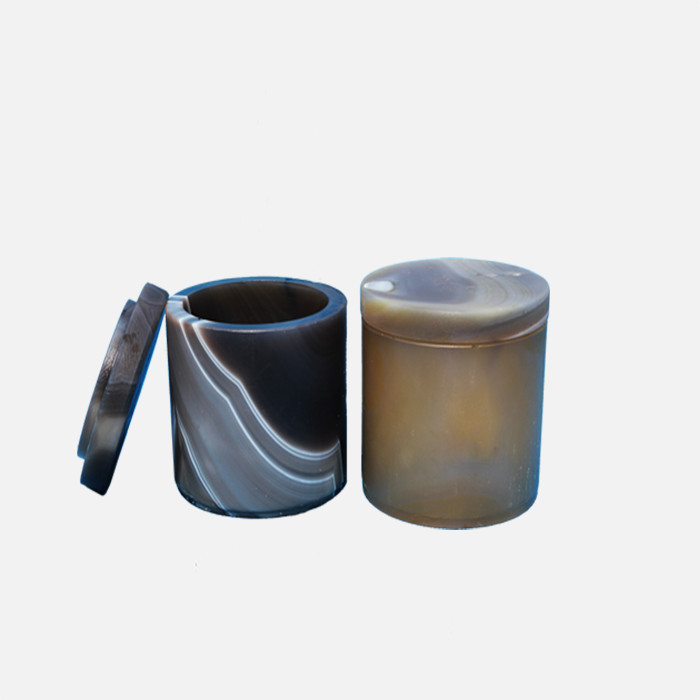

Product Display
Features of agate ball mall jars
1. No impurities, no cracks, glossy, high quality, strong vibration resistance. After experiments, it shows that the item have no
cracks, no bump after high-speed vibration abrasion.
2. This item is made out from agate stone raw materials imported Brazil and Uruguay, with bright color, harder than domestic
made stone by 0.5 to 1.
3. High temperature resistance, strong acid and alkali resistance, and can be used in acidic grind medium .
