PTFE Coated Microwave Extraction Equipment , Graphite Microwave Acid Digestion System

PTFE Coated Microwave Extraction Equipment , Graphite Microwave Acid Digestion System
PTFE Coated Microwave Extraction Equipment , Graphite Microwave Acid Digestion System PTFE Coated Microwave Extraction Equipment , Graphite Microwave Acid Digestion System PTFE Coated Microwave Extraction Equipment , Graphite Microwave Acid Digestion System

Large Image :  PTFE Coated Microwave Extraction Equipment , Graphite Microwave Acid Digestion System

Product Details:
Brand Name: YLK
Model Number: YKM-60

PTFE Coated Microwave Extraction Equipment , Graphite Microwave Acid Digestion System

Description
High Light:

PTFE coated microwave extraction equipment

,

acid microwave extraction equipment

,

Graphite microwave acid digestion system

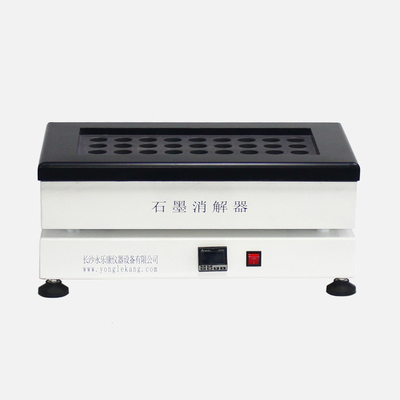

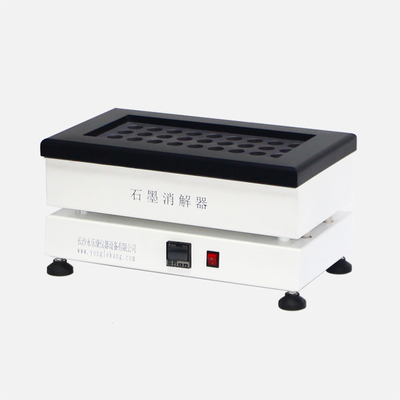

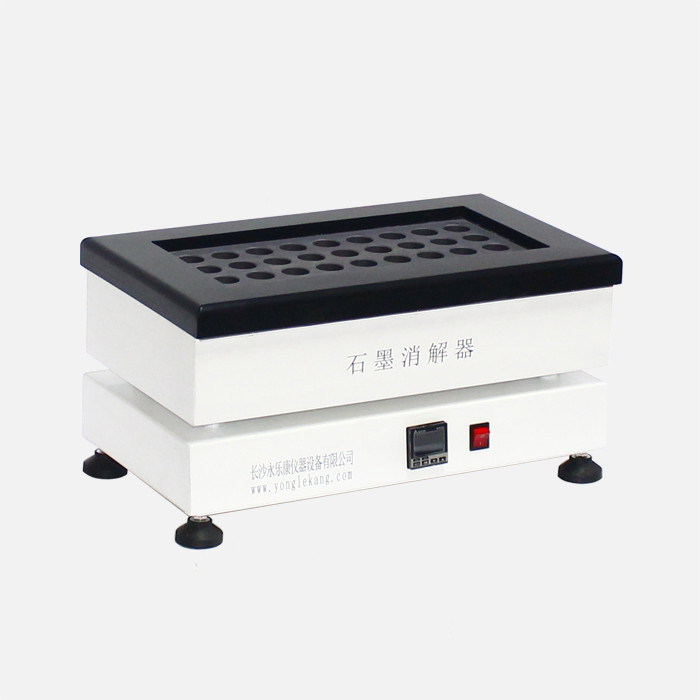

PTFE-coated Graphite Blocks Digester/Hot Blocks For Acid Digestion Instrument



Product Introduction

YKM Graphite Digestion Block is a new generation of inorganic sample pretreatment equipment. It applies new digestion technology and has the advantages of strong sample processing capacity, rapid heating, intelligent program control, complete digestion, and temperature balanceAt the same time, it can also be used for pretreatment of microwave digestion and acid treatment. It is an ideal accessory product for atomic absorption, atomic fluorescence, ICP-AES and other analytical instruments.



Applications



1. Environmental analysis field: Soil, sediment detection, water quality detection field

2. Food and Drug Field: Pharmaceuticals, food and beverages, feed and fertilizer fields

3. Mineral analysis field:Ore, raw material inspection, product quality inspection field



Technical Parameters

Model

YKM-60

Hole Number

60 pcs

Hole Size

Φ32*H80

Heating Plate

545*235 mm

Dimension

639*321*265 mm

Net Weight

30 kg

Temperature

Room Temperature ~ 260 ± 0.1 ℃

lternative Part

Time Controller

Alternative Function

Micro Computer Part can be placed outside the fume hood by USB cable. Convenient and can protect controller away from corrosion.



Product Features

  1. High-efficiency digestion capabilities and large sample processing capacity.,  processing up to 60 samples at the same time.
  2. Accurate temperature control and uniform digestion. The product is heated by high-purity ultra-fine graphite heating module, which has good     digestion consistency and repeatability. The temperature tolerance between holes is ≤±1.5℃. .
  3. Digestion intelligent program control, Digital display intelligent program temperature control, realize 16-segment program heating and control the heating holding time, and automatically stop heating after the heating program is completed.
  4. Unique design anti-corrosion and durable, The upper and lower split design, the controller and the digestion unit are separated to protect the electronic components from corrosion; the double-layer heat insulation design between the heating part and the control part effectively protects the control part from high temperature damage, thereby prolonging the service life of the instrument, and the work surface is adopted sprayed Teflon which is anti-corrosion
