Product Details:
|
Product Name: | Vertical Planetary Ball Mill | Power Supply: | 220V/380V |
---|---|---|---|
Input Size: | 3-10mm | Output Size: | Min. 0.1um |
Capacity: | 1/3 Of Jar | Certification:: | ISO, CE |
Highlight: | 1L Dual Planetary Ball Mill,Vertical Planetary Ball Mill,4x250ml Mill Jars Ball Mill |

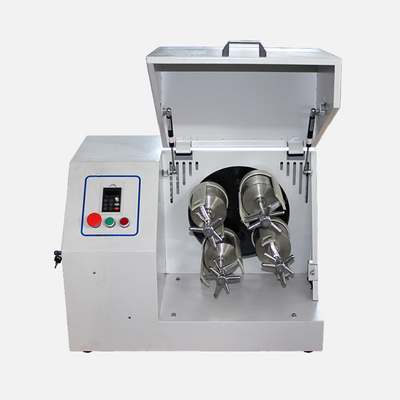

1L Dual High Energy Planetary Ball Mill For Laboratory 4*250ml Mill Jars
Product Introduction
Planetary ball mill is necessary equipment for mixing, fine grinding, sample preparing, nano-materials dispersing, new product developing and preparing small volume high-tech material production.
Working Principle
The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be grinding and mixing by the mill with dry or wet method. The size of ground powder can be reduced to as small as 0.1 micrometer.
Applications
It is widely used in geology, mining, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, beauty, environmental protection and other departments.
Product Display
Technical Features
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Max Load Capacity | Less than 2/3 of total volume of grinding jars |
Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
Output Granule | Minimum 0.1µm |
Max.Continuous Operating Time | 72 Hours |
Materials of Jar | stainless steel.agate,nylon,corundum, zirconia,etc |
Product Parameters
Model |
Jar Volume |
Max.Powder Capacity |
Rotation Speed (RPM) |
Revolution Speed (RPM) |
Max Noise |
Power (KW) |
Net Weight |
Dimension (mm) |
YKM-1L | 250ml | 330ml | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
YKM-2L | 500ml | 660ml | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
YKM-4L | 1L | 1.3L | 35-340 | 70-680 | 60db | 0.75 | 96kg | 830*500*580 |
Accessories of Grinding Pots & Balls
