Product Details:
|
| Product Name: | Factory Outlet Agate Mill Jar, Milling Jar | Material: | Agate |
|---|---|---|---|
| Volume: | 100ml/250ml/500ml/1L/2L/5L | Usage: | Used For Ball Mill Machine |
| Highlight: | 106mm Ball Mill Jars,500ml Ball Mill Jars,Wear Resistant milling jars |
||

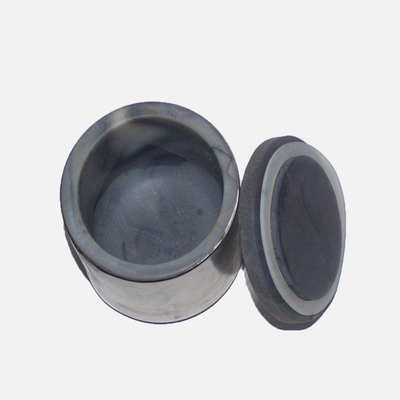

Factory Outlet Agate Mill Jar, Milling Jar
Features
1. No impurities, no cracks, glossy, high quality, strong vibration resistance. After experiments, it shows that the item have no cracks, no bump after high-speed vibration abrasion.
2. This item is made out from agate stone raw materials imported Brazil and Uruguay, with bright color, harder than domestic made stone by 0.5 to 1.
3. High temperature resistance, strong acid and alkali resistance, and can be used in acidic grind medium .
Product Introduction
Agate Mill Jar is a kind of material powder grinding jar which is matched for planetary ball mill machine. It has the advantages of high hardness, wear resistant, pollution avoid and high purify and it is always the first choice of grinding jar.
Product Parameters
| Volume of Jar |
Outside Diameter (mm) |
Inner Diameter (mm) |
Inner Depth (mm) |
Height of Jar (Not Contain Cover (mm) | Total Height (mm) | Weight (KG) |
| 50ml | 65 | 45 | 37 | 49 | 57 | 0.36 |
| 100ml | 75 | 50 | 52 | 62 | 70 | 0.56 |
| 250ml | 94 | 73 | 70 | 80 | 90 | 0.84 |
| 500ml | 106 | 82 | 90 | 100 | 108 | 1.31 |
| 1L | 130 | 107 | 114 | 126 | 141 | 2.54 |
| 2L | 156 | 130 | 150 | 170 | 190 | 4.43 |
Product Display
