Product Details:
|
Product Name: | Laboratory Benchtop Thermo Horizontal Shaker Incubator Machine | Shake Frequency: | 30-300rpm ±1 Rpm |
---|---|---|---|
Shake Range: | 26mm | Temperature Range: | Room Temperature +5℃-60℃ (±0.1℃) |
Standard Configuration: | 100ml×16pcs, Or 250ml×12pcs, Or 500ml × 9pcs | Tray Quantity: | 1pc |
Highlight: | Laboratory benchtop orbital shaker,Horizontal benchtop orbital shaker,benchtop shaking incubator thermo |

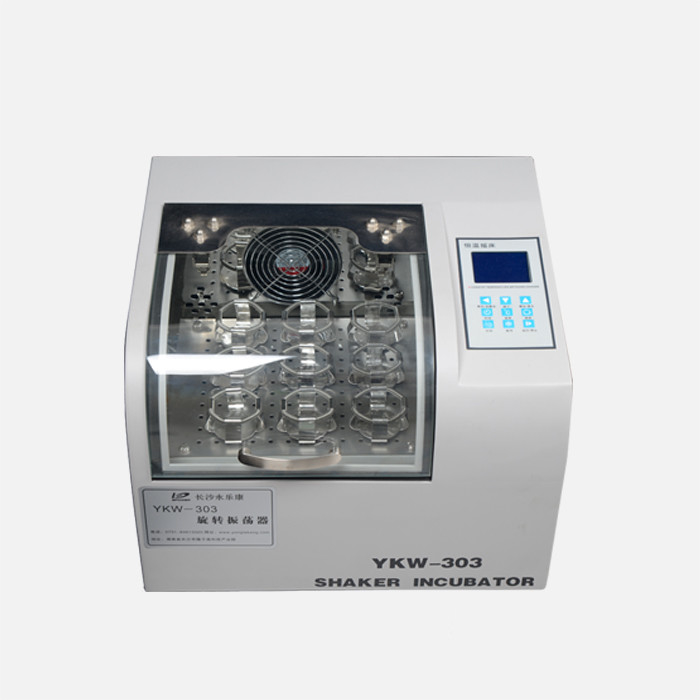

Laboratory Benchtop Thermo Horizontal Shaker Incubator Machine
Product Introduction
Orbital Shaker Incubator integrates automatic liquid shaking, separating and temperature control function together, It can meet varies experimental requirements with high speed rotation technique & vibration range stepless adjustable technique application. The shake plate applies to low speed big range rotation or high speed point vibration.
Application
Widely used for environmental treatment, bacterial culture, ferment, hybridization,biological chemical reaction and the enzyme & cell tissue research.
Product Specifications
Model No. | YKW-200B |
Rotation Frequency | 30~400rpm |
Frequency Accuracy | ±1 rpm |
Vibration Amplitude | φ26mm |
Max. capacity |
100ml×16pcs, or 250ml×12pcs, or 500ml × 9pcs |
Standard Configuration |
50ml×4pcs, or 100ml×4pcs, or 250ml×3pcs,or 500ml×3pcs |
Tray Dimension | 450mm×410mm |
Timing Range | 0~999 hours |
Temperature Control Range | 4℃~60℃ ( refrigeration type) |
Temperature Control Accuracy | ±0.1℃ |
Temperature Uniformity | ±1℃ |
Display Mode | LCD |
Tray Quantity | 1pcs |
External Dimension | 780mm × 682mm × 560mm |
Net Weight | 100KG |
Inner Chamber size & volume | 480mm × 450mm × 320mm(70L) |
Power | 580W,AC220V~240V,50H60Z~60HZ |
Product Display
Product Features
1) Integrate incubator and shaker.
2) Industrial ABS plastic cover & overall transparent window show cavity.
3) Slant humanized control panel and back-light big size LCD screen; Good vision effect.
4) Have memorize function for operating parameter; Avoid repeated or mistaken operation by code lock.
5) Have recovery function while with power connect; No influence from emergency electricity cut off and can recover as program set while starting again.
6) Have Auto stop protective device when the door is open to ensure the security of operator, It also equip with gas pull rod which is easy to open the door.
7) Auto stop heating and warning when actual temperature is 3℃ over pre-setting
8) Have brushless DC motor which is more stable and reliable.
9) The entire machine static sound design, the static electricity spurts models the box body ultra, the super big visual window with armored glass which is luxury and beauty.
10) No need set refrigeration coefficient, Full automatic temperature adjustment which can avoid tedious temperature adjustment setting. The heating rate can be set as per actual test requirements.
