Product Details:
|
Product Name: | China Factory Lab Equipment TCLP Testing Soil Sample Preparement Rotary Shaker, TCLP Rotary Agitator | Material: | Overall Steel Structure With Anti-corrosion Coating |
---|---|---|---|
Adapted Container: | 2L PE/ Glass / PTFE Bottle, ZHE | Rotate Speed: | 0-60RPM ±1R/MIN |
Temperature: | ROOM TEMP - 60℃ | Application: | Liquid With Suspended Solids, Chemicals Processing, TCLP |
Voltage: | 220V/110V | Warranty: | 1 Year |
Highlight: | Cabinet Type tclp rotary agitator,Laboratory tclp rotary agitator,TCLP laboratory rotary shaker |
China Factory Lab Equipment TCLP Testing Soil Sample preparement Rotary Shaker, TCLP Rotary Agitator
Product Introduction
Automatic Rotary Agitators(Cabinet Type) are sample agitation devices developed for use during the Extraction Procedure, Toxicity Characteristic Leaching Procedure (TCLP) US EPA Method 1311 and the Synthetic Precipitation Leaching Procedure (SPL).
Application
Widly applied in the related industry of solid waste toxicity identification, sample research treatment in industry of environment protection & solid waste dispose.
Solid waste extraction toxicity instrument (TCLP) Rotation Method:
-- Stipulated instrument of Chinese National Standard GB50085.3-2007 (Apply HJ/T299-2007)
-- Stipulated instrument of Chinese National Standard GB16889-2008 (Apply HJ/T300-2007)
-- Stipulated instrument of America EPA 1311 method.
Product Specification
Vessels loaded | 6 / 8 / 12 pcs 2L bottles (1L bottle available if needed) |
Bottle type | PE Bottle / PTFE Bottle / Glass Bottle / Zero Headspace Extractor for choose |
Storage Cabinet Volume | 157L |
Time Set | Minute/Hour set, 1-24H for alternative, accuracy to minute |
Rotation Method | Continuous positive rotation , Interval rotation Mode and Multi-segment curve mode settings are available. The rotation speed,rotation time and temperature can be set as per requirements. |
Rotation Speed | 0-60 rpm adjustable, Default set is 30 rpm |
Machine Material | Overall steel structure with anti-corrosion coating, and stainless steel fixtures |
Temperature Set | Room temperature to 60℃ adjustable |
Operation Method | Micro computer controlled. |
Safety Device | Overall sealed 360°overturn rotation, With flip cover electricity insulation device, electricity leakage protection device & overload protection device |
Alternative Accessories | Extraction container, high pressure filter system, extraction liquor collector, extraction agent, micro hole filter screen, etc |
Standard Configuration | constant temperature system, temperature control accuracy±0.5℃ |

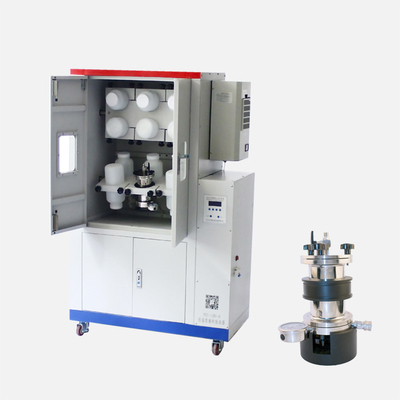

Product Display
Product Parameters
Model | Bottle Qty | Bottle Volume | Rotation Speed | Power Supply | Temperature | Dimension | Weight |
YKZ-08IV-H | 8pcs | 2L | 0-60RPM ±1R/MIN | AC 220V | Room TEMP - 60℃ | 1050*520*1575MM | 148KG |
YKZ-12IV-H | 12pcs | 2L | 0-60RPM ±1R/MIN | AC 220V | Room TEMP - 60℃ | 1050*520*1575MM | 153KG |
Product Advantages
