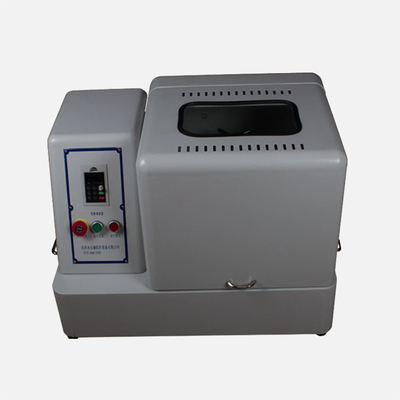

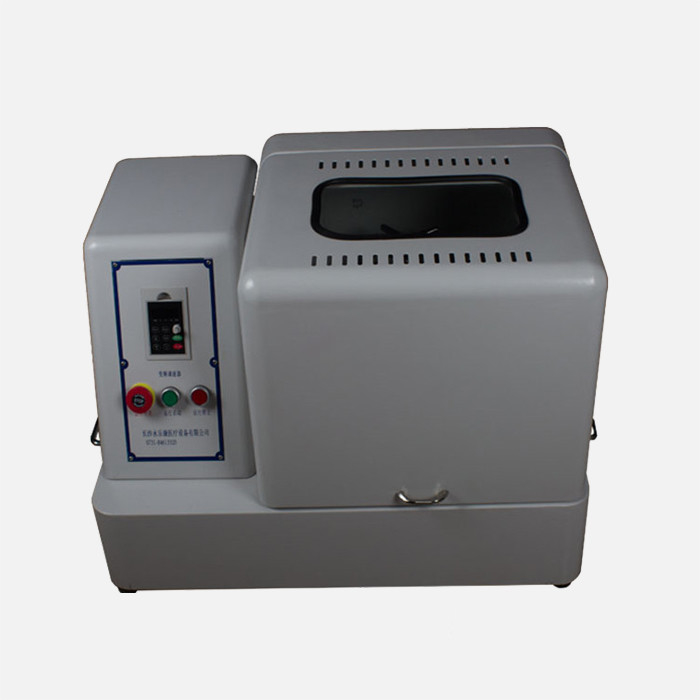

220V Laboratory Planetary Ball Mill Machine With Zirconia Grinding Jar

220V Laboratory Planetary Ball Mill Machine With Zirconia Grinding Jar
220V Laboratory Planetary Ball Mill Machine With Zirconia Grinding Jar 220V Laboratory Planetary Ball Mill Machine With Zirconia Grinding Jar

Large Image :  220V Laboratory Planetary Ball Mill Machine With Zirconia Grinding Jar

Product Details:
Place of Origin: China
Brand Name: YLK
Certification: ISO, CE
Model Number: YKM-2L
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: USD1500-USD3500
Packaging Details: Carton+Foam
Delivery Time: 3-7 working days
Payment Terms: T/T, L/C,Paypal. Alibaba Trade, Credit Card
Supply Ability: 300units/month

220V Laboratory Planetary Ball Mill Machine With Zirconia Grinding Jar

Description
Product Name: 220V Planetary Ball Mill Machine With Zirconia Grinding Jar Power Supply: 220V/380V
Input Size: 3-10mm Output Size: Min. 0.1um
Capacity: 1/3 Of Jar Noise:: Less Than 60db
Certification:: ISO, CE
High Light:

Laboratory Planetary Ball Mill Machine

,

220V Planetary Ball Mill Machine

,

Zirconia Grinding Jar Laboratory Ball Mill

220V Planetary Ball Mill Machine With Zirconia Grinding Jar





Product Introduction

YLK Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder,  Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.



Working Principle

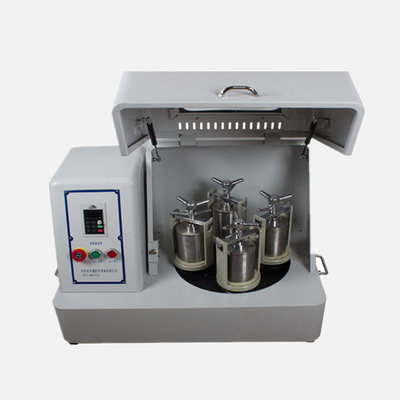

The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill.



Applications

Vertical planetary ball mill is widely applied in imany ndustries such as geology, mineral, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, environmental protection and so on. It is specially most suitable for production fields like electronic ceramics, structural ceramics, magnetic materials, lithium cobalt acid, lithium manganese, catalyst, phosphor, long afterglow phosphor, rare earth polishing powder and electronic glass. Powder, fuel cell, Zinc Oxide varistor, dielectric ceramics, alumina ceramics, zirconia ceramics, phosphor, zinc oxide powder, cobalt oxide powder, Ni-Zn ferrite, Mn-Zn ferrite and etc.



Product Display

220V Laboratory Planetary Ball Mill Machine With Zirconia Grinding Jar 0



Technical Features

Drive Mode Gear drive
Operation Mode Two or four grinding tanks working together
Max Load Capacity Less than 2/3 of total volume of grinding jars
Feed Size of Materials Soft and crispy material≤10mm,Other materials≤3mm
Output Granule Minimum 0.1µm
Rotational Speed Ratio 1/2
Max.Continuous Operating Time 72 Hours
Materials of Jar stainless steel.agate,nylon,corundum, zirconia,etc



Product Parameters

Model

Jar Volume

Max.Powder Capacity

Rotation Speed (RPM)

Revolution Speed (RPM)

Max Noise

Power (KW)

Net Weight

Dimension

(mm)

YKM-1L 250ml 330ml 35-340 70-680 60db 0.75 96kg 830*500*580
YKM-2L 500ml 660ml 35-340 70-680 60db 0.75 96kg 830*500*580
YKM-4L 1L 1.3L 35-340 70-680 60db 0.75 96kg 830*500*580
YKM-8L 2L 2.6L 35-290 70-580 60db 1.5 150 900*600*640
YKM-12L 3L 4L 35-290 70-580 60db 1.5 170 900*600*640



Advantages

1. Stable revolving speed.
2. High speed, large energy, high efficiency, small granularity.
3. Four powder samples can be produced at one time.
4. The machine is controlled by frequency converter
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating.
6. Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.




Accessories of Grinding Pots & Balls

220V Laboratory Planetary Ball Mill Machine With Zirconia Grinding Jar 1
